Using data grouping
Previous  Top  Next

Automatic Data grouping-an extremely powerful data viewing and manipulation metaphor

Follow this step-by-step tutorial to learn about the feature:

1. Click on the IE WebDeveloper V2 icon in the Internet Explorer toolbar to open the IE WebDeveloper main window (see launch IE WebDeveloper V2) , then click "HTTP Monitor" to activate the HTTP Monitor.
2. By default, the "start logging"hv_startbtn button is down, if not, click the "start logging" button to capture the HTTP traffic.

3. Enter "http://www.ebay.com" in the address bar to navigate to it.

4. Right-click the "Type" column header of the session grid to pop up the sensitive menu, as follows:

hv_groupbyfield

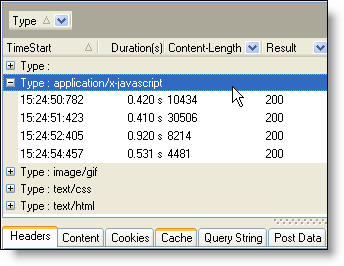

5.Click the "Group by This Field" to group the HTTP sessions by "type", as follows:

hv_groupresult

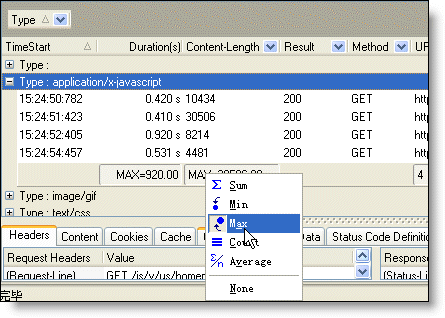

6. Some summary information,e.g. SUM, COUNT, MAX, MIN, AVG, can be viewed by using the "Footer" and "Group Footers" pop up menu item .

hv_groupfooterhv_groupfootermax
